| Business Type | Exporter, Supplier, Trader |
| Type | S Load Cell |
| Load Capacity | 500kg |
| Material | Alloy Steel |
| Click to view more | |
Product Details
Capacity
500 Kg
Output Sensitivity(FS)
2.0 +/- 0.002 MV/V
Creep Error (30 Minutes)
0.02
| Load Capacity |
500kg
|
| Material |
Alloy Steel
|
| Capacity |
500 Kg
|
| Output Sensitivity(FS) |
2.0 +/- 0.002 mV/V
|
| Combined Error |
0.02%
|
| Creep Error (30 minutes) |
0.02
|
| Temperature Effect on Zero |
0.002% per degree C
|
| Temperature Effect on Output |
0.001% per degree C
|
| Zero balance |
+/- 1% FS
|
| Input Resistance |
350 ohm
|
| Output Resistance |
350 ohm
|
| Insulation resistance at 50V DC |
>= 5000 M Ohm
|
| Compensated Temperature Range |
-10 to +40 Deg C
|

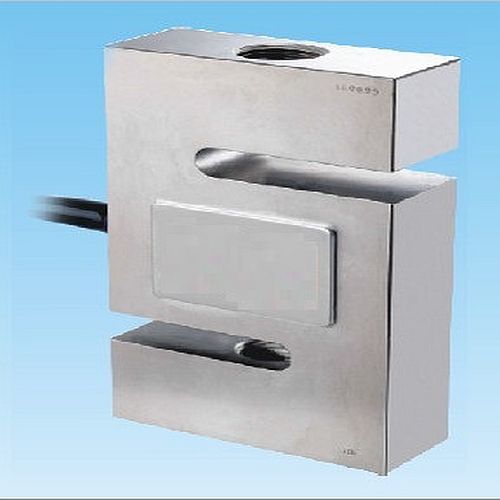

Looking for "S Type 500 Kg Load Cell" ?
